SWT-NS600B 8-40mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-Tech

SWT-NS600B 8-40mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-Tech

SWT-NS600B 8-40mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-Tech
SWT-NS600B 8-40mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-TechSWT-NS600B 8-40mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-TechSWT-NS600B 8-40mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-TechSWT-NS600B 8-40mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-Tech
CategoriesExtrusion Welder
BrandMM-Tech Thermoplastic Welding Equipment Manufactur
ModelSWT-NS600B
CertificateCE, ISO9001
Packing Material1 Set
MOQPlywood Box
FOB portGuangZhou
Terms of PaymentL/C, Western Union, T/T, Paypal
Update TimeDec 22,2024
Detail Information

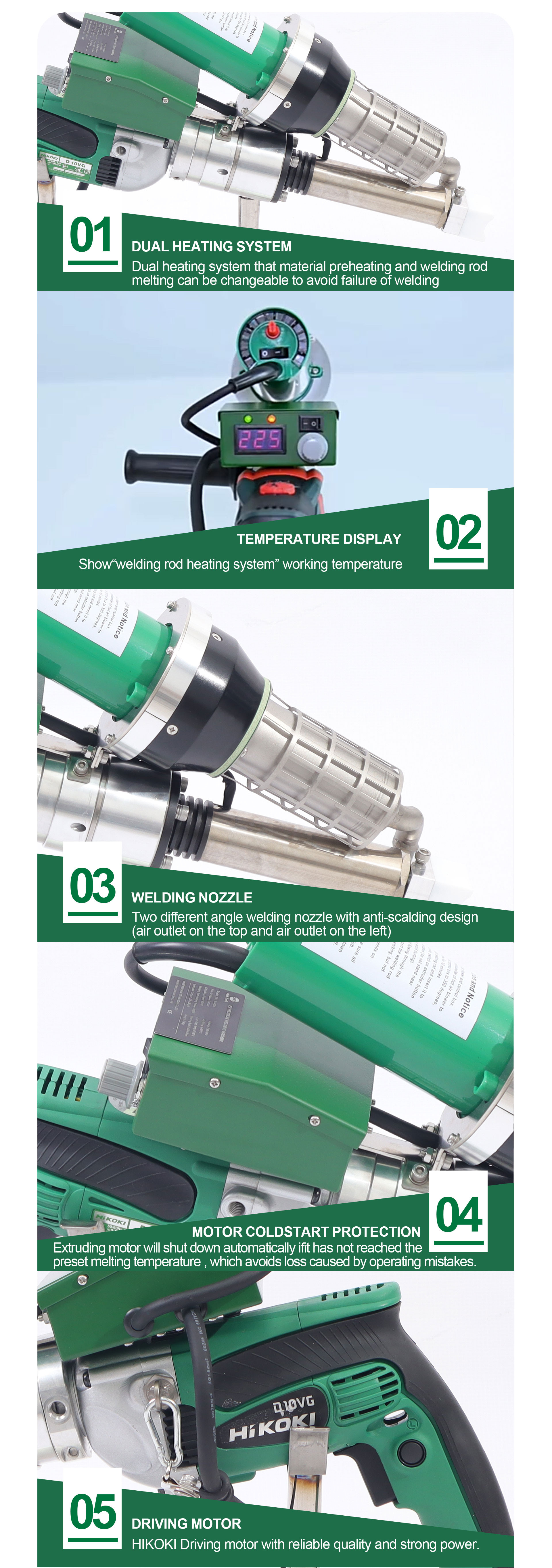

product poster
Detail Information
Model
SWT-NS600B
Input voltage
230V
Frequency
50 / 60Hz
Extruding power
800W
Hot air power
3400W
Welding rod heater power
800W
Air temperature
20 - 620 ℃
Extruding Temperature
50 - 380 ℃
Extruding volume
2 - 2.5 Kg/h
Welding rod diameter
φ3 a 4 mm, (5 mm can be customized)
Weight
6.9 Kg
Driving motor
HIKOKI
Materials thickness
8 - 40 mm
Series Oe Ddoducts
Product Specification
Hand-held extrusion welders are usually used to weld HDPE, PP, PVDF, and other thermoplastic materials in projects like plastic water tank manufactured, plastic pipes and plastic sheets connection, etc.

Ergonomic design with comfortable grip handle, a multifunctional display screen with temperature and air volume adjustable, and simple operation are the main feature of MM-Tech extrusion welder.
