SWT-NS610B 8-40mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-Tech

Categories	Extrusion Welder
Brand	MM-Tech Thermoplastic Welding Equipment Manufactur
Model	SWT-NS610B
Certificate	CE, ISO9001
Packing Material	1 Set
MOQ	Plywood Box
FOB port	GuangZhou
Terms of Payment	L/C, Western Union, T/T, Paypal
Update Time	Dec 31,2024

Contact Now

Favorites

Detail Information

Detail Information

Model	SWT-NS610B
Input voltage	230V
Frequency	50 / 60Hz
Extruding power	1300W
Hot air power	3400W
Welding rod heater power	800W
Air temperature	20 - 620 ℃
Extruding Temperature	50 - 380 ℃
Extruding volume	2 - 3 Kg/h
Welding rod diameter	φ3 a 4 mm, (5 mm can be customized)
Weight	7.2 Kg
Driving motor	METABO
Materials thickness	8-40 mm

Series Oe Ddoducts

Product Specification

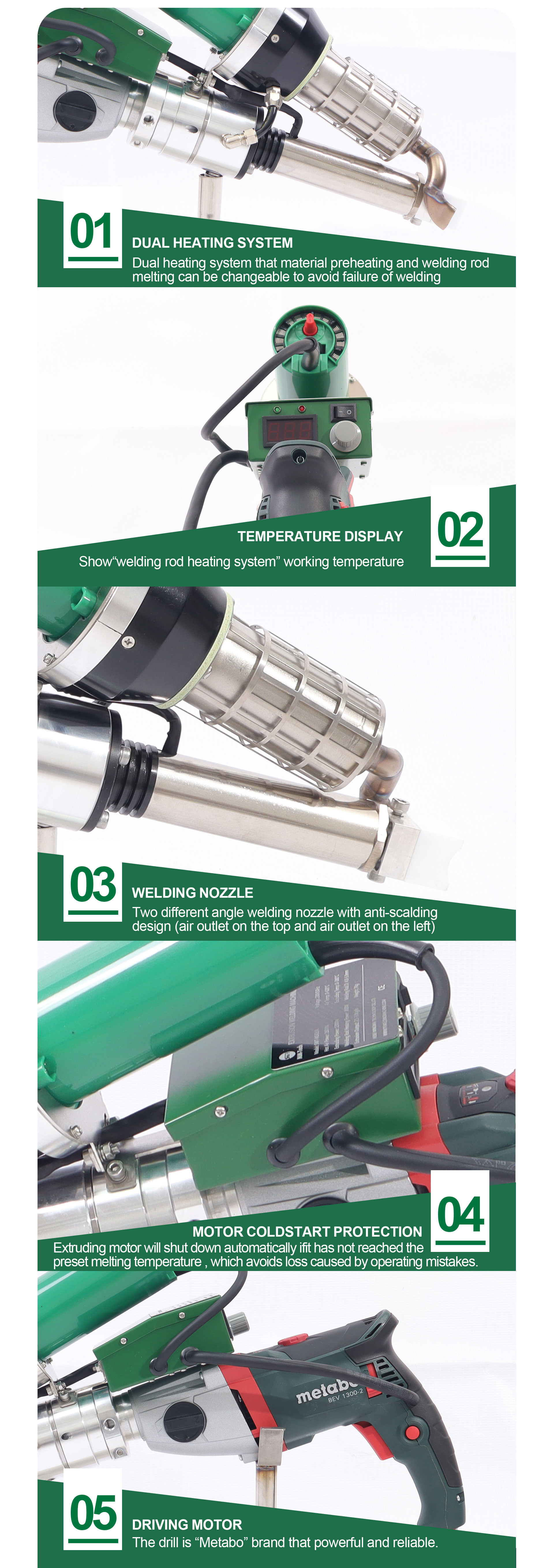

Hand-held extrusion welders are usually used to weld HDPE, PP, PVDF, and other thermoplastic materials in projects like plastic water tank manufactured, plastic pipes and plastic sheets connection, etc.

Ergonomic design with comfortable grip handle, a multifunctional display screen with temperature and air volume adjustable, and simple operation are the main feature of MM-Tech extrusion welder.

Application
