SWT-NS800D 0.2-1.5mm Thickness Geomembrane Welding Machine For HDPE, LDPE, PVC, EVA, ECB, PP, and others hot melting materials | MM-Tech

Categories	Geomembrane Welders
Brand	MM-Tech Thermoplastic Welding Equipment Manufactur
Model	SWT-NS800D
Certificate	CE, ISO9001
Packing Material	1 Set
MOQ	Plywood Box
FOB port	GuangZhou
Terms of Payment	L/C, Western Union, T/T, Paypal
Update Time	Dec 31,2024

Contact Now

Favorites

Detail Information

Detail Information

Model	SWT-NS800D
Input voltage	230V / 120V
Frequency	50 / 60Hz
Power	800W / 1100W
Weight	5 Kg
Overlap width	10 cm
Welding speed	0.5 - 5 m/min
Temperature	50 - 450℃
Seam strength	≥ 85% Original
Seam width	12.5 mm*2, Interior Cavity 12 mm
Welding thickness	0.2 - 1.5 mm
Feeding method	From two sides
Digital display	Temperature & Speed

Series Oe Ddoducts

Product Specification

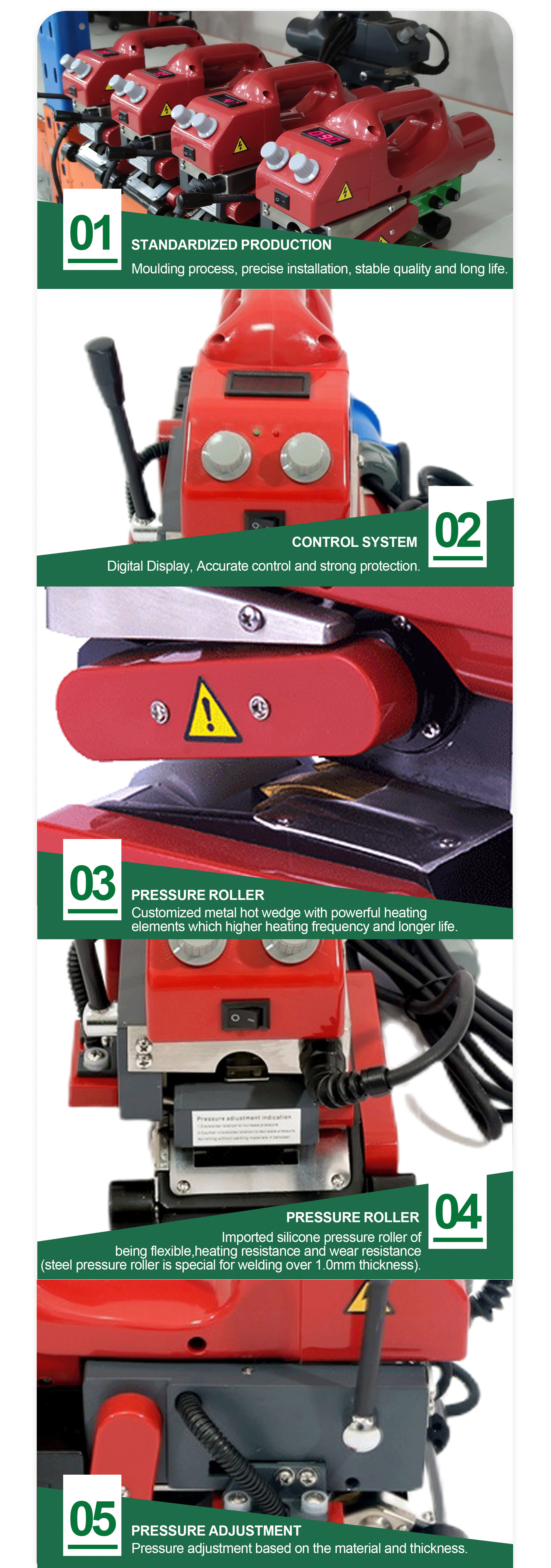

Geomembrane Hot Air Welder adopts an advanced hot wedge structure. With its high power, high speed, and pressure, it welds 1.0 - 3.0mm thickness hot melting materials such as HDPE, LDPE, PVC, EVA, ECB, PP, and others.

Ergonomic design with comfortable grip handle, a multifunctional display screen with temperature and air volume adjustable, and simple operation are the main feature of MM-Tech extrusion welder.

Application
